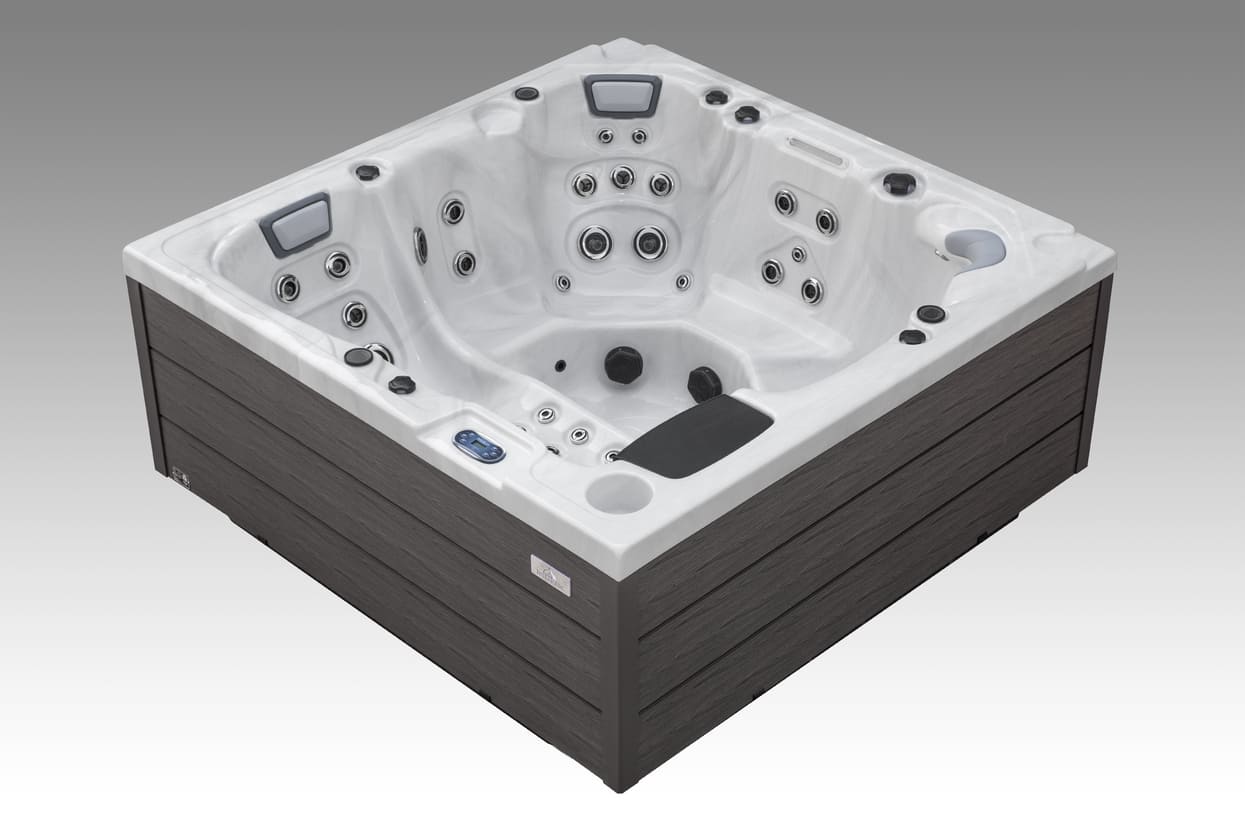

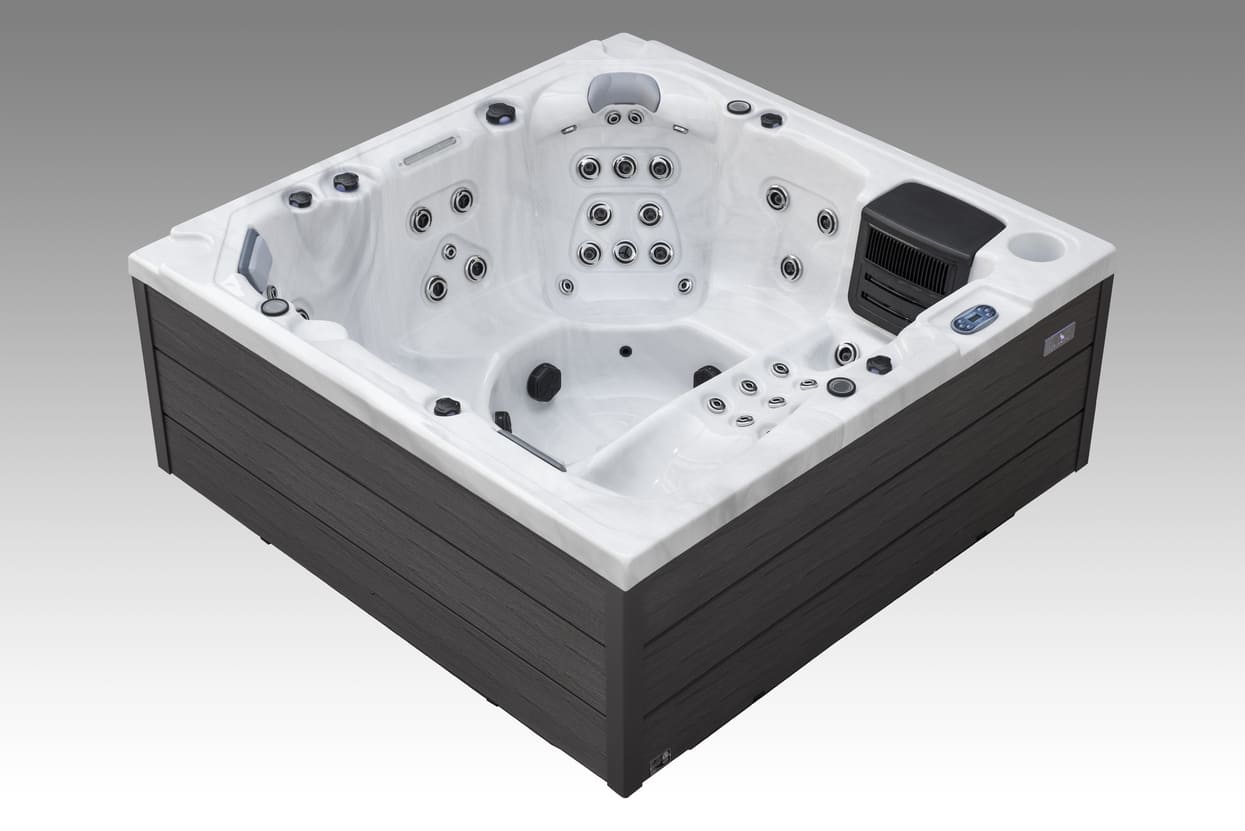

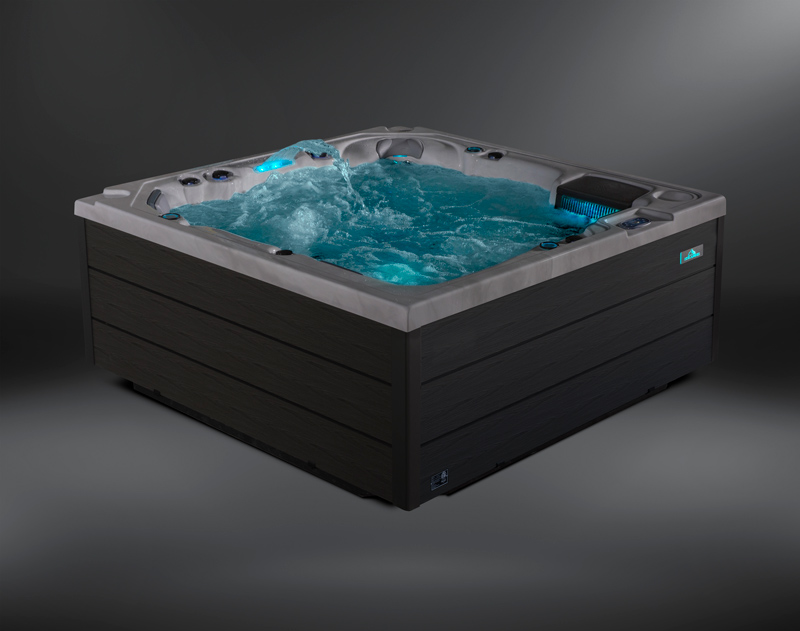

Fjord AH510

Spacious Comfort Meets Dynamic Hydrotherapy

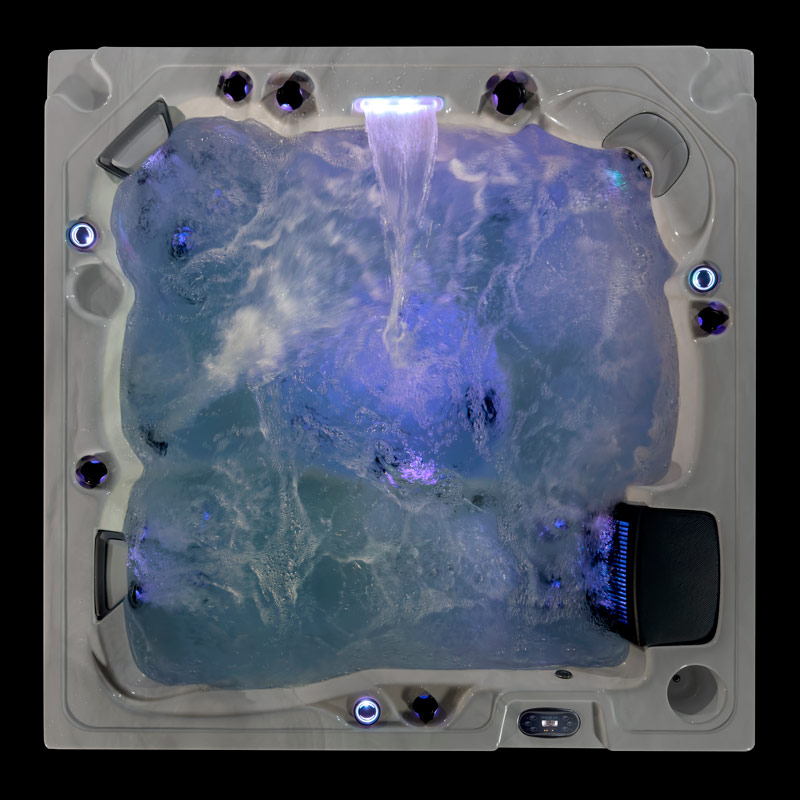

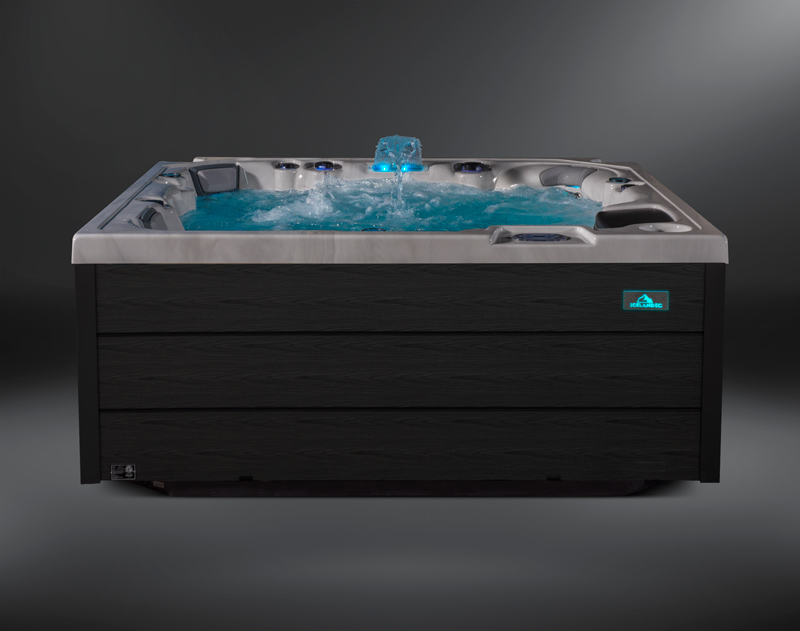

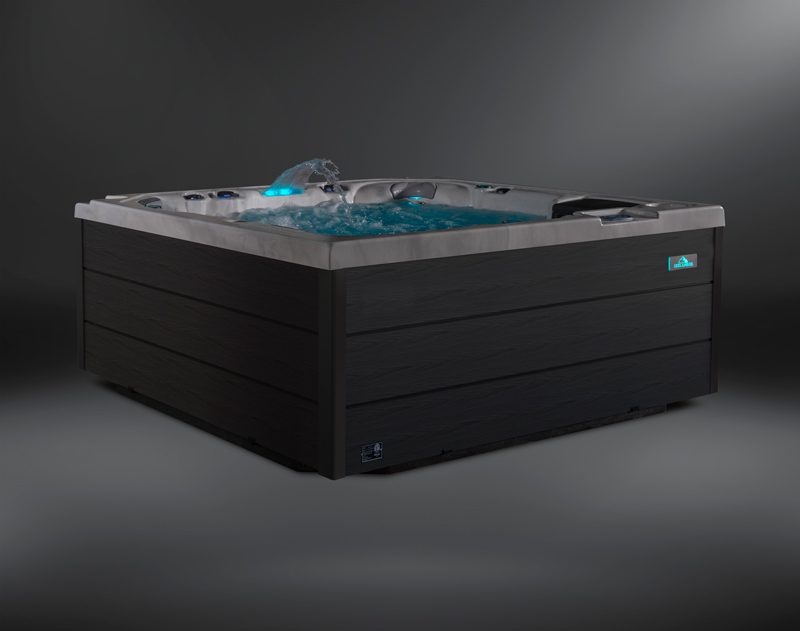

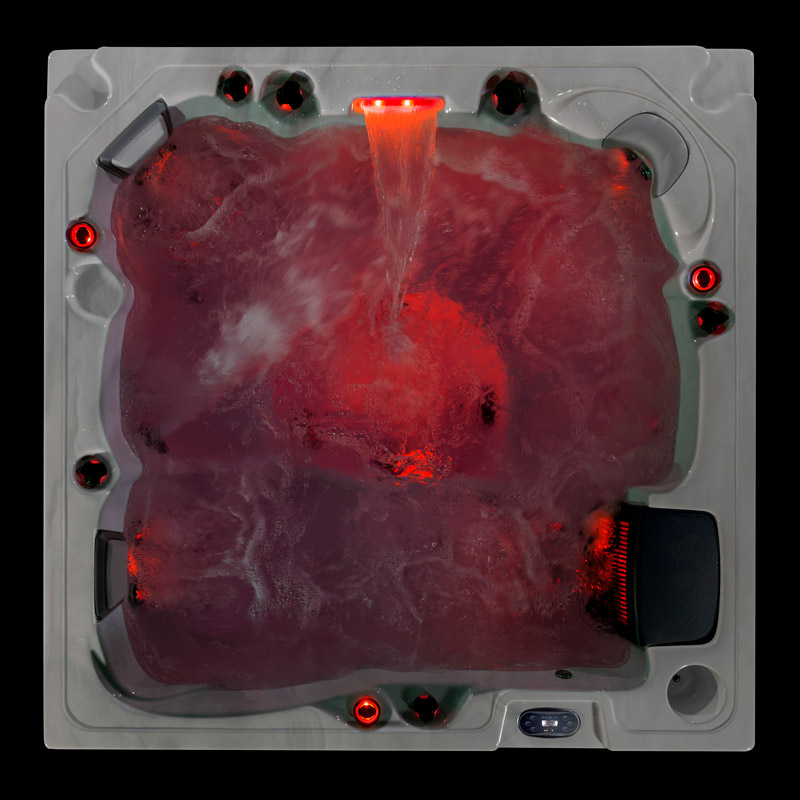

Rejuvenating Lighting & Ambiance

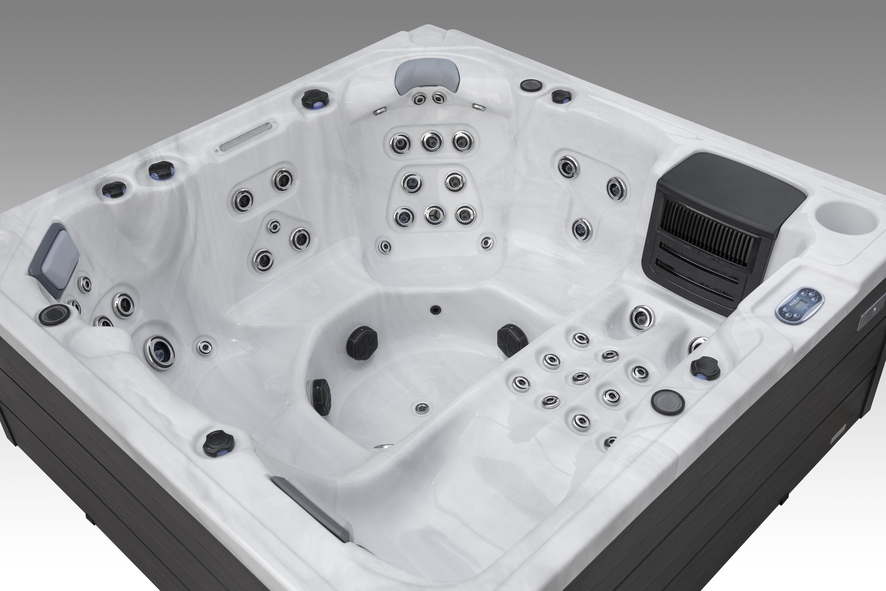

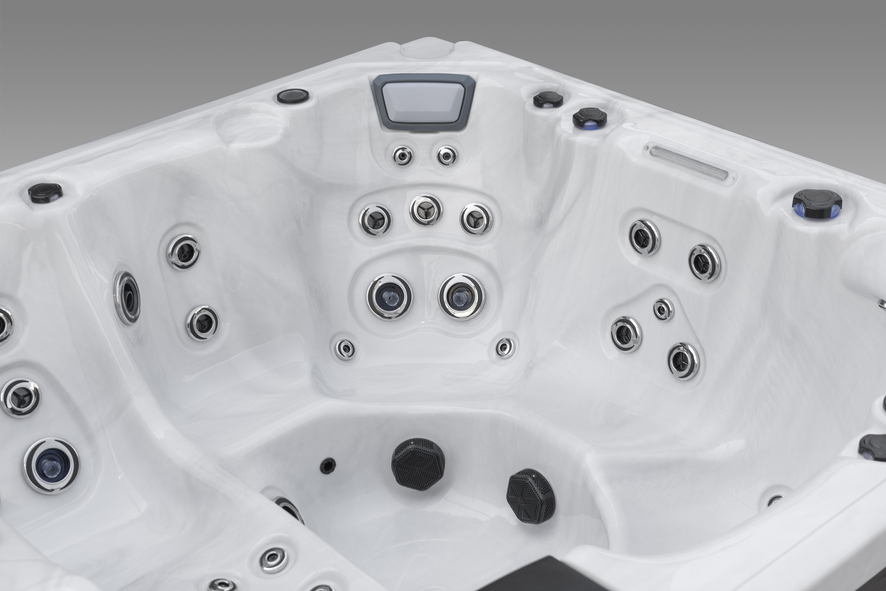

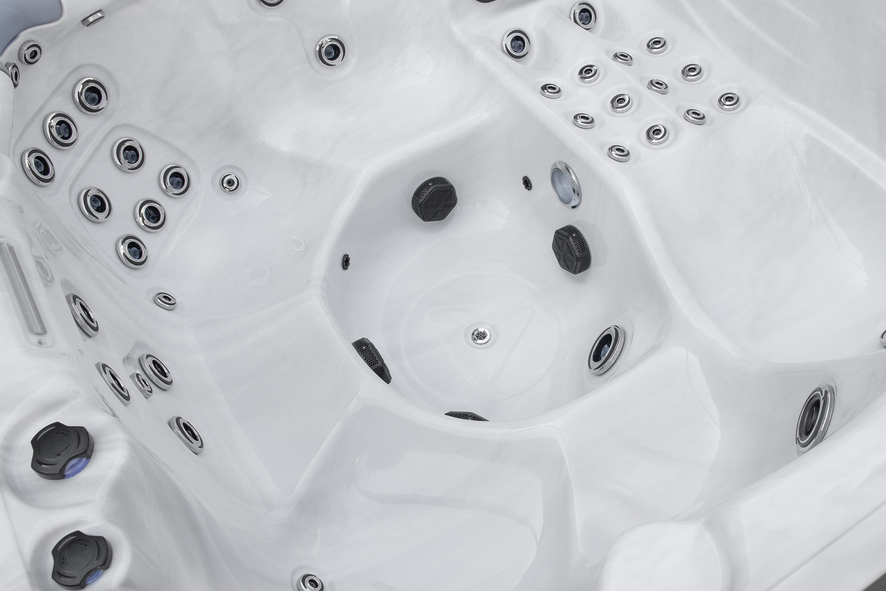

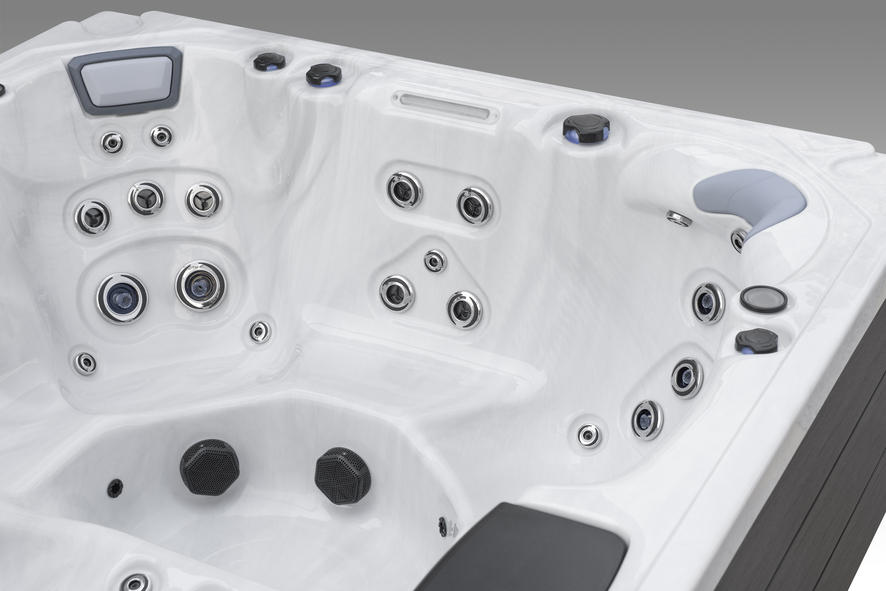

Top Quality Jets and Pumps

Physical Specifications

Dimensions 2160×2160×920mm (85×85×36″)
Weight 837 lbs
Water Capacity 327 gallons
Seating Capacity 5 seats + 1 lounger
Pillows 3 EVA pillows with LED inserts
Lighting 1 large 5″ underwater LED light
LED Cup Holders 3 pcs
LED Cabinet Logo Icelandic logo
LED Strip Lighting Premium horizontal LED strip light included

Performance & Features

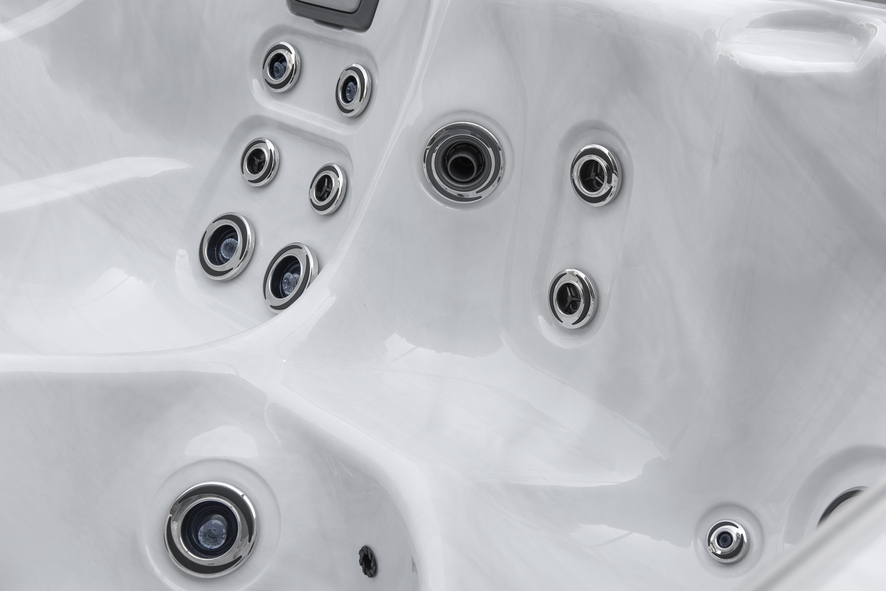

Total Jets55 total (2.25″ direct: 23, 3.5″ direct: 14, 3.5″ single roto: 12, 5″ direct: 5, 5″ whirlpool: 1)
Jets with LED Lights3.5″ direct: 14, 5″ direct: 5, 5″ whirlpool: 1
Regulators & Diverters4 air regulators, 1 water diverter, 1 Waterfall Control
Control SystemBalboa BP501 (5.5KW) + TP600
Booster Pump4 HP – 2 speed
Circulation PumpLX WTC50 ×1 (0.5HP)
Filtration System2 Reemay polyester filters (LED inserted) with clear grill
Water Features1 LED waterfall
Ozone GeneratorYes, plus Ozone Reaction Chamber
Electrical Requirements220v / 60Hz
Loading Capacity (40HQ)12 pcs

Material & Finish

Spa ShellSilver marble
CabinetDark Grey
Bottom BaseABS
FrameStainless steel
Insulation (Shell)High-density spa foam (0.6–0.8 inches thick)
Insulation (Cabinet & Bottom)Aluminum foil insulation included
Spa CoverOxford material, 2–2.8″ thick
StepsTwo-layer step included
Floor MatNot included
PackingWaterproof spa bag
